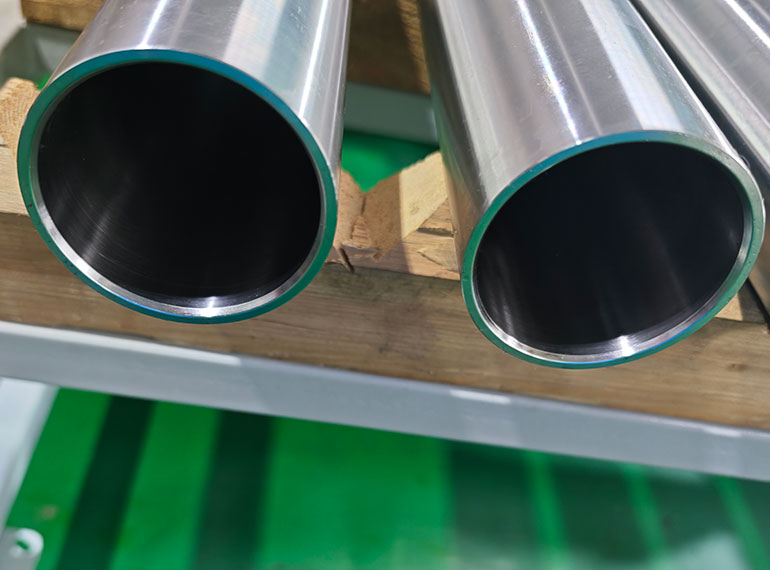

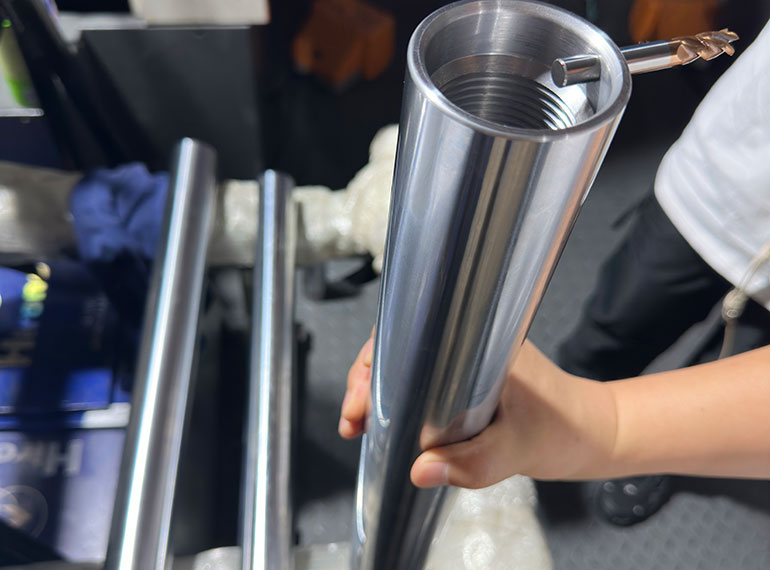

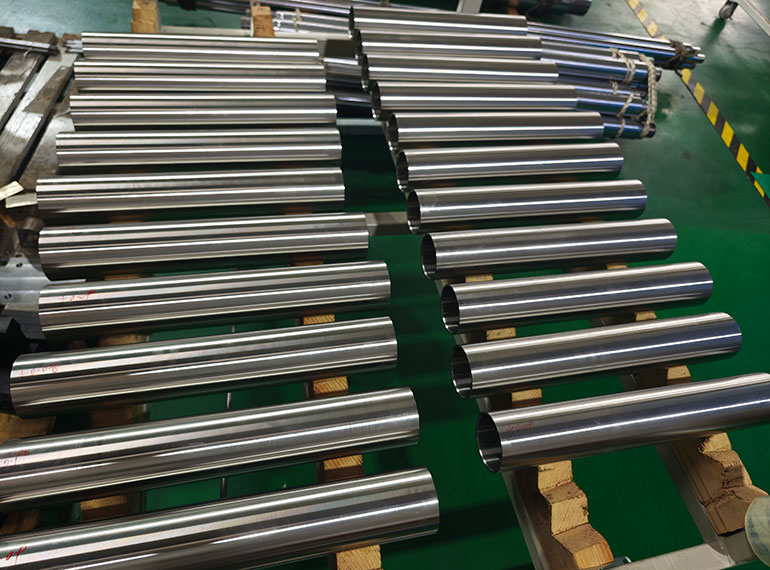

Stainless Steel Cylinder Tube

Stainless Steel Cylinder Tube

Stainless steel cylinder tube is manufactured from cold drawn stainless steel 304 /304L or stainless steel 316/316L tubes, or other grades of stainless steel tubes, by honing process or skiving & roller burnishing process. We usually use stainless steel honing tubes to used to manufacture and repair the stainless steel hydraulic cylinders or stainless steel pneumatic cylinders.

As one of the leading stainless steel cylinder tube suppliers and manufacturers,Wuxi YUTONG has been supplying and exporting  honed tube and cylinder barrel for almost 20 years. We produce honed steel tubes and skived roller burnished tubes used for hydraulic cylinder or pneumatic cylinder with high quality & good prices.Imperial sizes & metric sizes available.

Description Of Stainless steel cylinder tube

MaterialStainless Steel 304/316,Duplex 2205,etc.

Delivery Condition: BK, BK+S, GBK, NBK

ID Size : 20mm – 1500mm

Length: max 16m

Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Straightness: ≤ 0.5/1000

Roughness: 0.2-0.4 u

Tolerance EXT: DIN2391, EN10305, GB/T 1619

Tolerance INT: H7,H8,H9

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

Packing: Bundle with steel strip and PE sheet or wooden case

Overview of our Stainless steel cylinder tube
